Open Metal Detector

For detecting and separating metal impurities from free fall bulk materials.

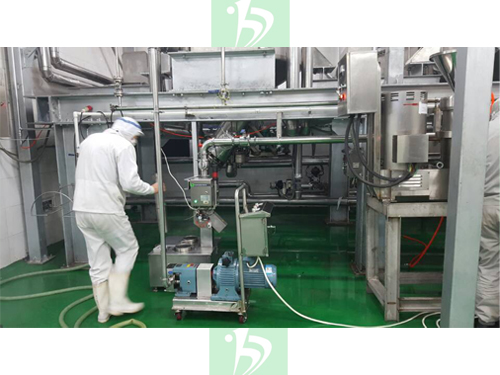

Case Pictures

Case Video

Work Simulation

Product Introduction

Essential Information

Quality:          This machine adopts German technology. The main control board is imported from Germany so as to provide high
                       sensitivity and high stability.
Application:  Detect magnetic and non-magnetic metal impurities from free fall bulk materials guarantee product quality.

Product Advantages/ Performance Characteristics

Design:             Special design can effectively avoid the interference of vibration noise and product effect. High stability
                          round outlet for easy connection.Reliable sealing.
Design:             Ease of installation with only four screws. Impact structure for easy installation. Avoid contamination caused
                          by product accumulation clog.
Appearance:    Machine housing and product direct contact parts are made of stainless steel 304.
Size:                  Opening size can be customized to suit any needs.
Production:      Quick rejection for minimum material loss do not interfere normal production process.
Materials:         Loose dry materials (powder particles etc.) with well flow ability.
Temperature:   Suitable detect material temperature range -10--80℃. Can use temperature resistant parts for special products.
Reject:              Automatic flap rejection of metal impurities. Alarm function is optional.
System:             Power failure protection. Automatic counter record reject times.
Precision:         Maximum Fe0.5mm SUS0.8 mm Non Fe0.55mm (can customize higher precision)
Configuration: SMC air cylinder MAC solenoid valve SNS air filter etc.
Scheme:           Compliant with food grade requirements.
Level:                IP54.

Special Description

Application range: plastic chemical food industries

Technical Parameter

Model Passage Size
(mm)
Detect Precision(mm) Dimensionsmm Max Throughput
(L/H)
Fe SUS No Fe
FF30 26 0.4 0.7 0.45 320*340*370 400
FF50 45 0.5 0.8 0.55 2000
FF80 80 0.75 1.2 0.8 8000
FF100 102 0.8 1.4 0.85 340*350*473 12000
FF120 116 1 1.5 1.1 16000
FF150 154.6 1.5 2 1.6 460*436*706 25000
FF200 194 1.8 2.2 2.1 520*600*920 44000
FF250 240 2.5 2.9 2.8 68000

Quality Assurance

Function:         Detect magnetic and non-magnetic small metal impurities even the metal is enclosed in the product.
Protection:      Protect downstream equipments in plastic industry avoid unnecessary production halts.
Improve:          Always improve the quality of products.
Provide:           Inspection reports.
Optimization:  Optimize production process and improve efficiency.
Benefits:          Avoid complaints or product recalls improve your corporate image.
