Quality:          High precision high speed and stable performance. 100% in-line weight check suit for production. Over/under weight
                       products are immediately rejected. The whole weighing process is under real time monitoring.
Application:  For weight detecting after product has been packed as cartons bags or bottles. It is suitable for pharmaceutical food
                       industries of higher standard requirements.

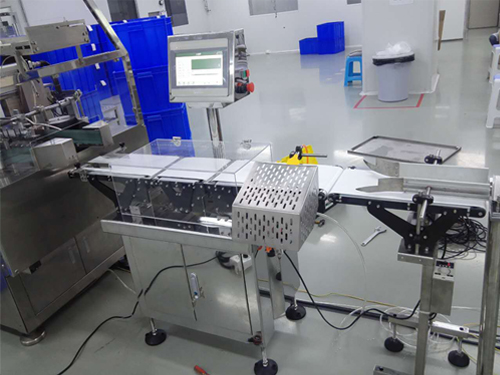

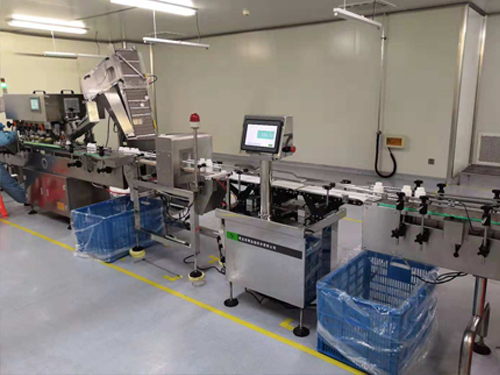

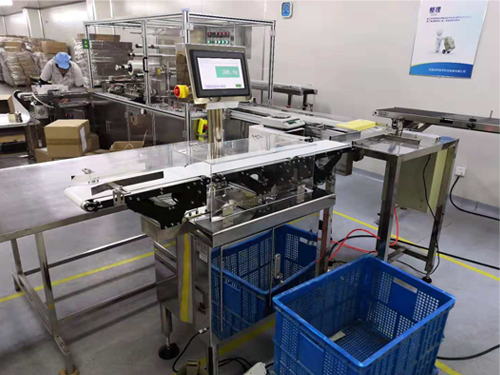

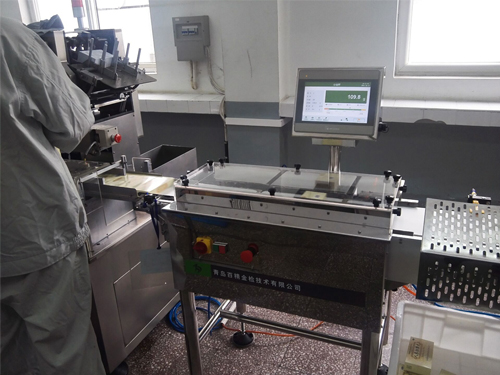

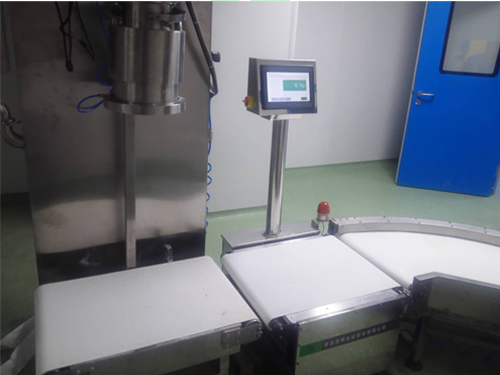

Site:              This machine can use after any packaging machine or conveyor.

Design:                 Open structure design. The weighing belt and machine body can be separated completely. Machine is of minimum
                              cleaning area easy for maintenance.
Height:                 The machine height can be adjusted. Belt width can be customized to suit for products.
Appearance:        It is made of SS304 stainless steel fully mirror polished. Power supply 220V with earthing.
Customization:    Accept customization to suit your production process.

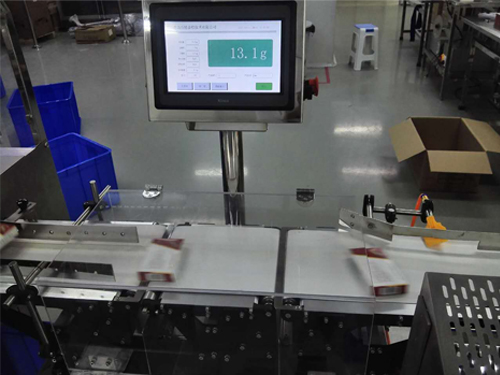

System:                Intuitive HMI operation. It has the functions of product learning. It has 200 storages of different products data. It can
                              also store 100000 incidents. 10 inch color touch screen for easy operation. Built-in cull clock USD data export.
                              Multiple connect interface. Product tracing functions.
Motor:                  Brushless DC with drive. Digital signal direct control speed.
Operation:           System stores multiple programs. Operator one-button operation. User password has level control. Machine has
                             performance self qualification function.
Precision:            Precision is adjustable. Products 100% detect during conveying.
Reject:                 Blow push flap stop arm reject methods.
Scheme:              The machine is compliment to the requirements of the GMP and CE. Meet 21 CFR part 11 certification requirements.
Levels:                 Protection Degrees: IP54 which can meet the requirements of HACCP certification.
Power:                 The whole machine power consumption is 0.2kw/H which is entirely energy saving. (under 500g)
Documentation:  All the material certifications as well as IQ OQ PQSOP and FAT are supplied with.

Weighing range	QCW500A/AB/B （0-500g）			0-1000g	0-5000g	0-50kg
Speed	40m/min	80m/min	120m/min	40m/min	80m/min	30m/min
Precision	±0.1g	±0.2g	±0.5g	±0.5g	±2g	±10g
Capacity (pcs/min	Maximum 100	Maximum 180	Maximum 260	Maximum 50	Maximum 80	Maximum 25
Belt size	250*150mm	250*150mm	250*150mm	300*200mm	400*200mm	800*500
Conveying direction	Right → Left or Left → Right
Dimensions	1160*540*(1185-1285)mm
Power	230V/110V  50/60Hz
Protection level	IP54  (optional IP65)

Accept:                        We accept challenge testing.
Improve:                     Always improve the quality of products.
Optimization:              Optimize production process and improve efficiency.
Benefits:                     Leave the unqualified products in your workshop avoid complaints and improve your corporate image.
Purchase:                   Economic
Delivery time:            3 days
Warranty:                   12 months.
Additional warranty:  Added to 5 years warranty with extra 10% cost.
After-sale:                  For domestic customers we promise to resolve any issues within 48 hours and change parts within warranty.
                                     And for overseas customers we promise to send out parts within 12 hours.
