Metal Detector and Capsule Polisher

For capsules de-dusting polishing lifting and sorting of the capsules. metal impurities are separated from capsules as well.

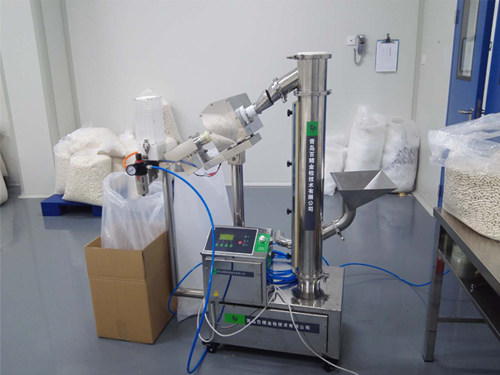

Case Pictures

Case Video

Work Simulation

Product Introduction

Essential Information

Quality:         This machine adopts German technology. The polisher adopts spiral principle performance is stable.
Application:  Especially to use with capsule filling machine for capsules de-dusting polishing and lifting of the capsules. metal
                       impurities are separated from capsules as well. Empty broken or separated capsules are sorted automatically.
Site:              This machine can use with any model capsule filling machine or use as independent unit.

Product Advantages/ Performance Characteristics

Design:                          Open and modular design; the brush the inlet and outlet ports can be dismantled extremely easy for maintenance.
                                       Thoroughly hygienic design. The brush is food grade material. Machine polishing result is good high production
                                       efficiency. Complete separation of dust and machinery.
Height:                           The machine height can be adjusted to meet requirements.
Appearance:                  It is made of stainless steel fully mirror polished. Product contact part is SS304 (SS316L is optional). The capsule
                                        sorting unit and non metallic parts are all made of food grade material.
Cleaning:                       This machine is modular design free tool dismantling easy cleaning safe and compliment with GMP specifications.
System:                          Inverter technology is adopted can adjust speed and pause user friendly.
Operation:                     Operation by manual knobs which are intuitive and convenient for operation.
Sorting:                          Use compressed air
Powder Discharging:   It has an exclusive outlet for fine powders. It can connect to a bypass from the capsule filling machine. It can also use
                                       an independent vacuum cleaner.
Power:                           The whole machine power consumption is 0.3kw/H which is entirely energy saving. Power supply 220V with earthing.
Scheme:                        The machine is compliment to the requirements of the GMP and CE.
Levels:                           Protection Degrees: IP65 which can meet the requirements of HACCP certification.
Documentation:            All the material certifications as well as IQ OQ PQSOP and FAT are supplied with.


Metal detector: Please refer to Pharmaceutical metal Detector.

Special Description

Integrated unit:  Control unit is imported from Germany. Capsule polisher and metal detector are integrated design use one control
                             box to control both machines. Machine is compact structure to suit site environment. Intuitive operation of machines
                             user password has level control. Machine has performance self qualification function. It has closed product transport
                             within the unit. Suitable for hazardous products and ensure production safety.
Metal detector:  Please refer to 800kHz high precision Pharmaceutical metal Detector.

Technical Parameter

Suitable product  Capsule 00#-4#
Dimensions  1225X475X1405mm ( integrated unit)
Capacity  Maximum 300000 PCS/H
Discharge time  5s
Surface finish  Good
Power  220V/110V  50/60Hz
Integrated unit  metal detector and polisher
maximum scanning sensitivity Fe 0.2mm SUS 0.4mm NoFe 0.3mm

Quality Assurance

Performance:  Metal detector and Polisher integrates capsule polishing de-dusting metal impurities separation and empty
                          capsule sorting functions.
Improve:          Always improve the quality of products.
Optimization:  Optimize production process and improve efficiency.
Benefits:          Leave the unqualified products in your workshop avoid complaints and improve your corporate image.
Accept:             We accept challenge testing.
Warranty:         12 months.
After-sale:        For domestic customers we promise to resolve any issues within 48 hours. And for overseas customers we
                         promise to send out parts within 12 hours.
